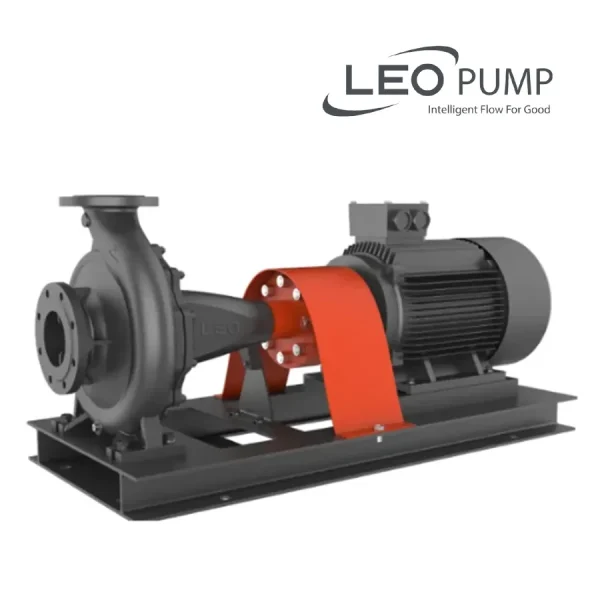

LEO – LEP Bare Shaft End Suction Centrifugal Pump
Application
-Water supply systems, pressure boosting, heating systems for commercial buildings,
-Industrial applications.
-Fire fighting.
Features
-Low noise & Long life bearing
-Max. operation pressure: 10 bar
-Cast iron/stainless steel pump body
-Stainless steel shaft & Bronze/stainless steel/cast iron impeller
-Structure: Horizontal, Axial End-Suction, Single-Stage, Single Suction, Volute Casing, Back pull-out”
Brand:
Category:
Model:
Type:
Specifications
Power Range 0.55 – 200 kw (0.7 – 272 HP)
Max Flow – 1584m³/hr
Max Head – 152m
Inlet/Outlet: 50 – 350mm
