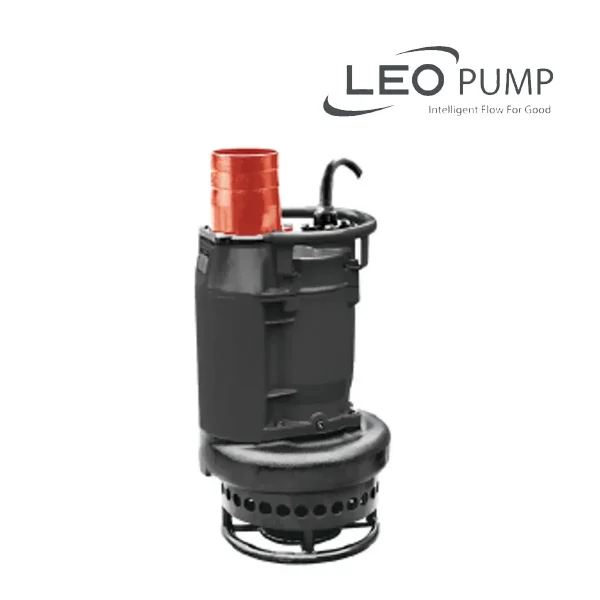

LEO – KBS Submersible Dewatering
Application:
-Civil Engineering
-Mines, quarries, Coal ore & slurries
-Sewage Treatment plants
-General pumping purposes
-Pumping Fluid: Sludgge, liquid containing mud and bentonite.
Features
Cast Iron pump body
-Silicon carbide Mechanical Seal
-Cast Iron Impeller
-Copper Winding
-Insulation Class: B (0.75-5.5kw 2 Pole), F (7.5kW 2 Pole / 5.5-7.5kW 4 Pole)
-Enclosure class: IP68
-Motor protection built in (0.75-7.5kw – 2 Pole, 5.5-7.5kw – 4 Pole)
Brand:
Specifications
Power Range 0.75-45KW (1-60 HP)
Max Flow – 1080m³/hr
Max Head – 45m
Max Immersion Depth: 20 meters
Cable Length: 10 meters
Max. Liquid Temperature: +40°C
Liquid PH Value: 6-10
Allowed by the particle diameter: 20-80mm
