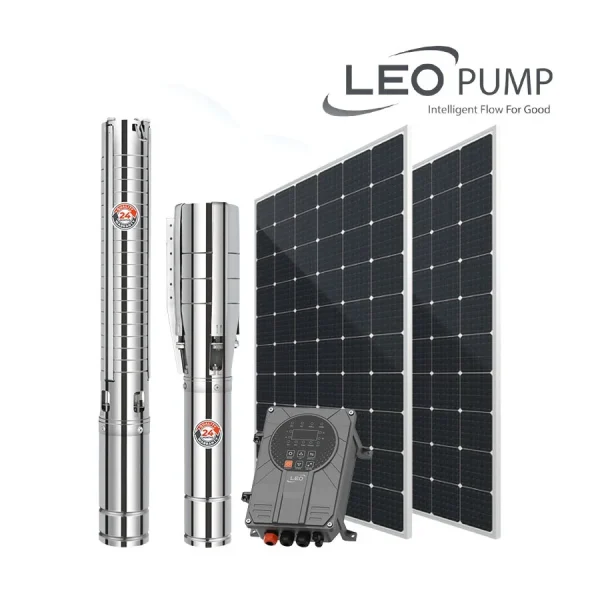

LEO LPY series Hybrid AC&DC Solar Submersible Pump (SS impeller)
APPLICATION
• Agriculture irrigation, Livestock feeding, Domestic water lifting
• Clean water supply from wells or reservoirs
• Off-grid solar pumping system
FEATURES
• Oil-filled motor
• With MPPT AC/DC Inverter
• AISl304 impeller and diffuser
• AISl304 oil chamber
• High efficiency PMSM brushless motor
(PMSM: Permanent-Magnet Synchronous Motor)
MppT AC/DC Inverter
• Can be used for both AC and DC power supply
• Enclosures class: IP55
• Ambient temperature: -15 – 60C
• LED Displays working conditions & Fault code
• Auto Start & Stop
• Soft start & VFD function
Brand:
Specifications
| Model | Inverter | Specification | ||||||||
| Impeller | Related. Power(W) | Motor Volt(V) |
MAX.Flow (m3/h) |
MAX.Head (M) |
Solar Panel Configuration (Option 1) | Solar Panel Configuration (Option 2) | Recommended solar panel | |||
| 4LPY11-36-110-750 | DSFP-110-0.75 | SS | 750 | 110 | 11 | 36 | DSFP-110-0.75 | 410W*4pcs | 300W*4pcs | 300W*4pcs |
| 4LPY7.5-65-150-1100 | DSFP-150-1.1 | SS | 1100 | 150 | 7.5 | 65 | DSFP-150-1.1 | 560W*4pcs | 300W*5pcs | 300W*5pcs |
| 4LPY10.5-83-200-1500 | DSFP-200-1.5 | SS | 1500 | 200 | 10.5 | 83 | DSFP-200-1.5 | 460W*6pcs | 300W*7pcs | 300W*7pcs |
| 4LPY17-86-300-2200 | DSFP-300-2.2 | SS | 2200 | 300 | 17 | 86 | DSFP-300-2.2 | 410W*10pcs | 300W*10pcs | 300W*10pcs |
| 4LPY23-50-300-2200 | DSFP-300-2.2 | SS | 2200 | 300 | 23 | 50 | DSFP-300-2.2 | 410W*10pcs | 300W*10pcs | 300W*10pcs |
