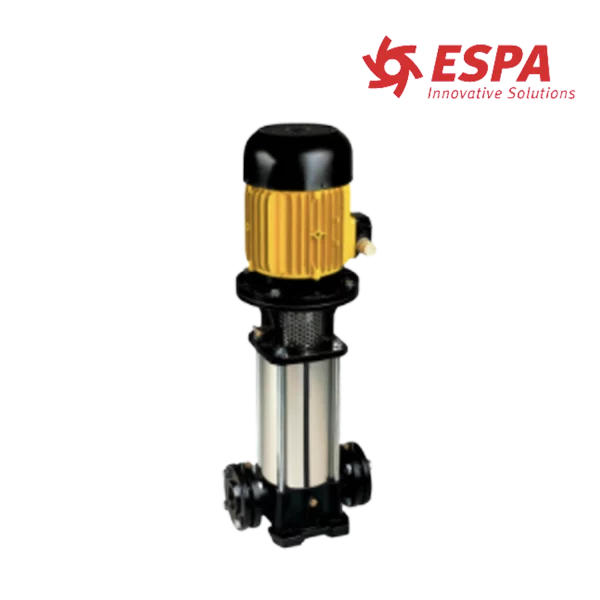

ESPA – Vertical In-Line – MULTI VE

  • Surface Vertical Centrifugal multistage pump in-line for water supply
  • Pump body and impellers in AISI 304.
  • Pump shaft in AISI 431.
  • Diffusers in technopolymer.
  • Suction and discharge in cast iron.
  • Mechanical seal.
  • Motor casing in aluminium.
  • O-rings in NBR.
  • Counter flanges and gaskets included.
  • Multi VE 94: Motor-wet end coupling system V18.
  • Multi VE 121N: Motor-wet end coupling system V1.
  • Asynchronous 2 poles.
  • IP 54 protection.
  • Class F insulation.
  • Continuous operation.
  • Maximum water temperature: 40° C.
Add to quote

Brand:

Category:

ESPA – Vertical In-Line – MULTI VE

Pumps

Model:

ESPA – Vertical In-Line – MULTI VE

Multi VE

Type:

ESPA – Vertical In-Line – MULTI VE

Vertical In-line

Specifications

  • Capacities: up to 124 gpm
  • Heads: deliver up to 541 feet
  • Pipe connection: up to 2″, suction and discharge
  • Max. operating pressure: 235psi
  • Max. standard seal for water temp.: 40°C
  • Motor rating: up to 25 hp, 115/230V or 230/380/460V, single or three phase, 3450RPM, 60hz
