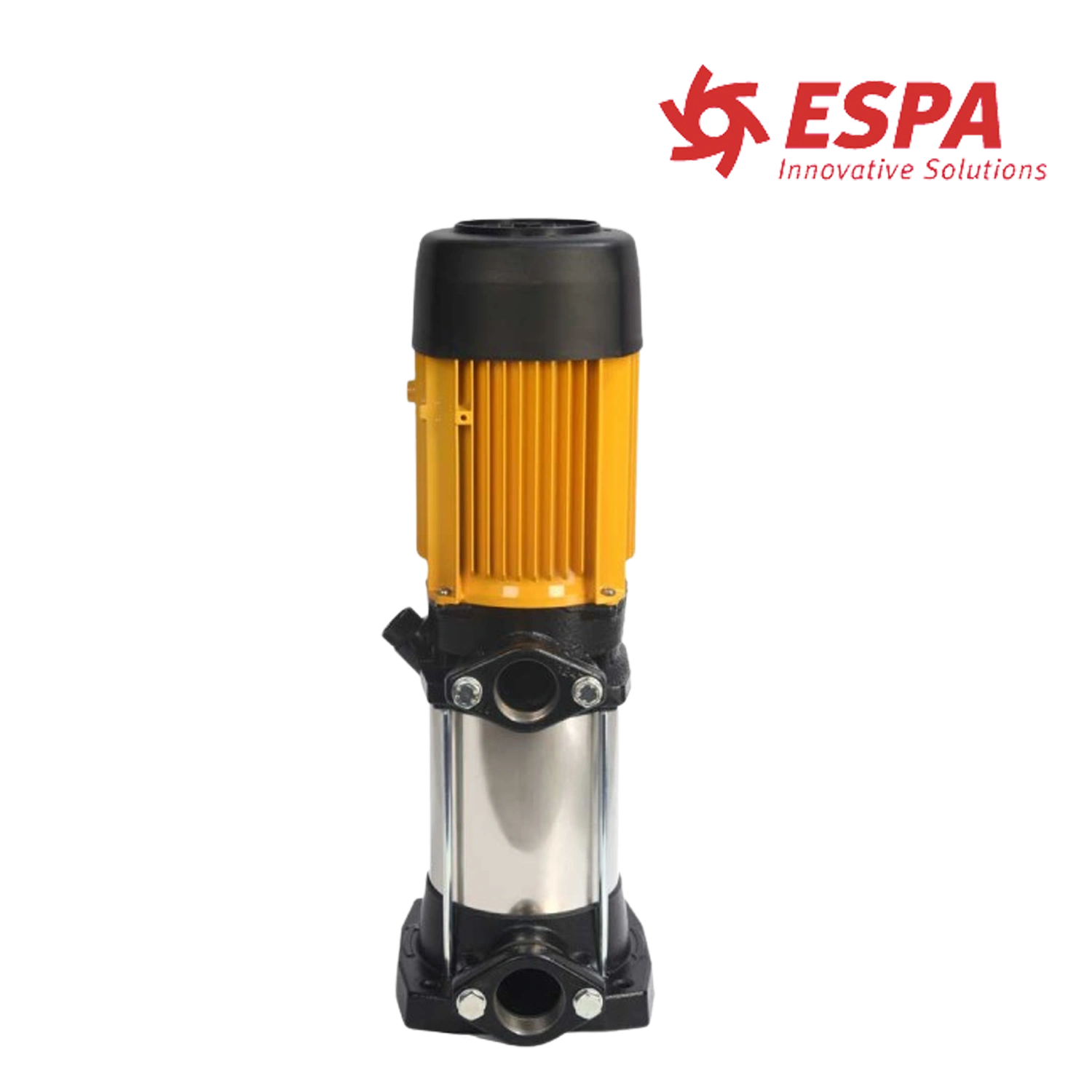

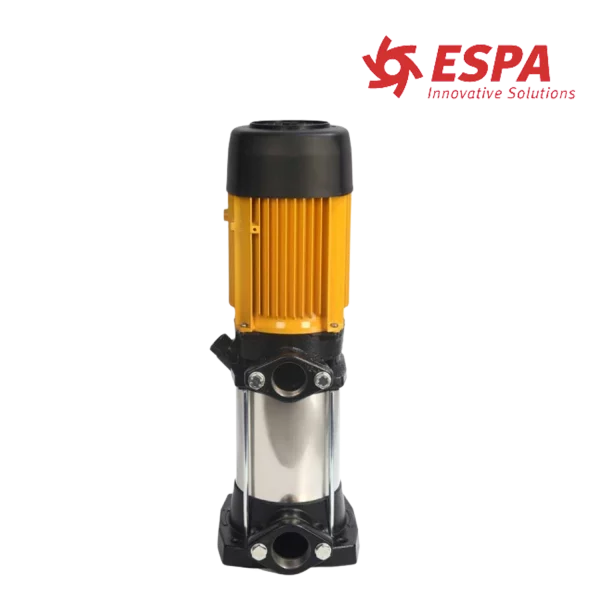

ESPA – MULTI
- Pump body and impellers in AISI 304.
- Pump shaft in AISI 431.
- Diffusers in technopolymer.
- Suction and discharge in cast iron.
- Mechanical seal.
- Motor casing in aluminium.
- O-rings in NBR.
- Oval counter flanges DIN 2558 and gaskets included.
- Asynchronous 2 poles.
- IP 55 protection.
- Class F insulation.
- Single phase motor with built-in thermal protection.
- Continuous operation.
- Maximum water temperature: 40° C.
Brand:
Specifications
- Capacities: up to 83 gpm
- Heads: deliver up to 459 feet
- Pipe connection: up to 1-1/2 to 1- 1/4″, suction and discharge
- Max. operating pressure: 145psi
- Max. standard seal for water temp.: 40°C
- Motor rating: up to 5 hp, 115/230V, 230/380/460, single phase or three phase, 3450RPM, 60hz
